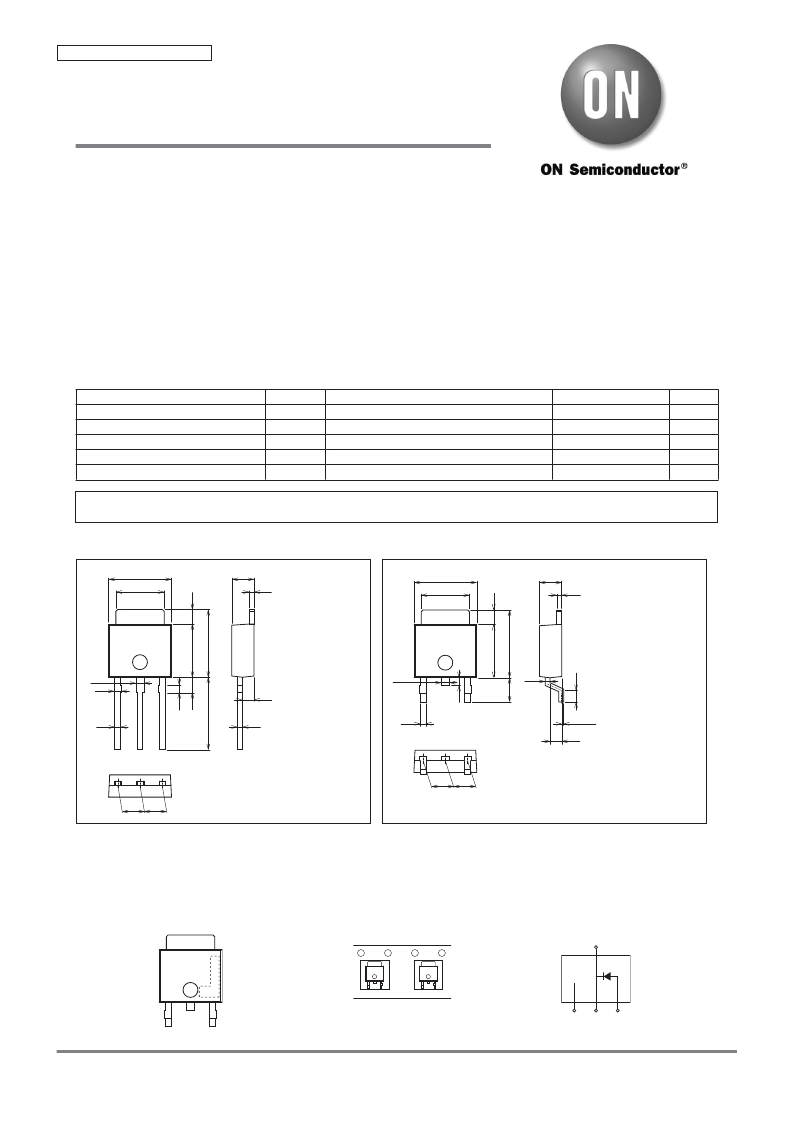

Ordering number : ENA1705A
UD0506T
Planar Ultrafast Rectifier
Low VF type, 5A, 600V, 1.3V, TP/TP-FA
Features
http://onsemi.com
?
?
?
High breakdown voltage (VRRM=600V)
Low noise at the time of reverse recovery
Halogen free compliance
?
?
Fast reverse recovery time
Low forward voltage (VF max=1.3V)
Speci ? cations
Absolute Maximum Ratings at Ta=25°C
Parameter
Repetitive Peak Reverse Voltage
Average Output Current
Symbol
VRRM
I O
Conditions
Ratings
600
5
Unit
V
A
Surge Forward Current
Junction Temperature
Storage Temperature
I FSM
Tj
Tstg
Sine wave 10ms
40
150
--55 to +150
A
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions unit : mm (typ)
7518-002
Package Dimensions unit : mm (typ)
7003-001
6.5
5.0
2.3
0.5
UD0506T-H
6.5
5.0
2.3
0.5
UD0506T-TL-H
4
4
0.85
0.7
1.2
0.85
1
2
3
0.5
0.6
1
2
3
0.5
1 : No Contact
2 : Cathode
3 : Anode
4 : Cathode
0.6
2.3
2.3
0 to 0.2
1.2
1 : No Contact
2 : Cathode
3 : Anode
4 : Cathode
2.3
2.3
TP
TP-FA
Product & Package Information
? Package : TP
? JEITA, JEDEC : SC-64, TO-251
? Minimum Packing Quantity : 500 pcs./bag
? Package : TP-FA
? JEITA, JEDEC : SC-63, TO-252
? Minimum Packing Quantity : 700 pcs./reel
Marking
(TP, TP-FA)
U0506
LOT No.
Packing Type (TP-FA) : TL
TL
Electrical Connection
4
Semiconductor Components Industries, LLC, 2013
1
2
3
September, 2013
82912 TKIM/42110SC TKIM TC-00002328 No.A1705-1/7
